Wastewater Heat Exchanger & Wastewater Technology

Our product portfolio for wastewater heat recovery. System solutions for multi-family housing & industry.

Durchlaufwärmetauscher

ABW-DWT
Abwasserpufferspeicherwärmetauscher

ABW-PSW
Abwasserweiche

ABW-K2
Spülfunktaster

SFT
Abwasserschichtspeicherwärmetauscher

ABW-SSW 180

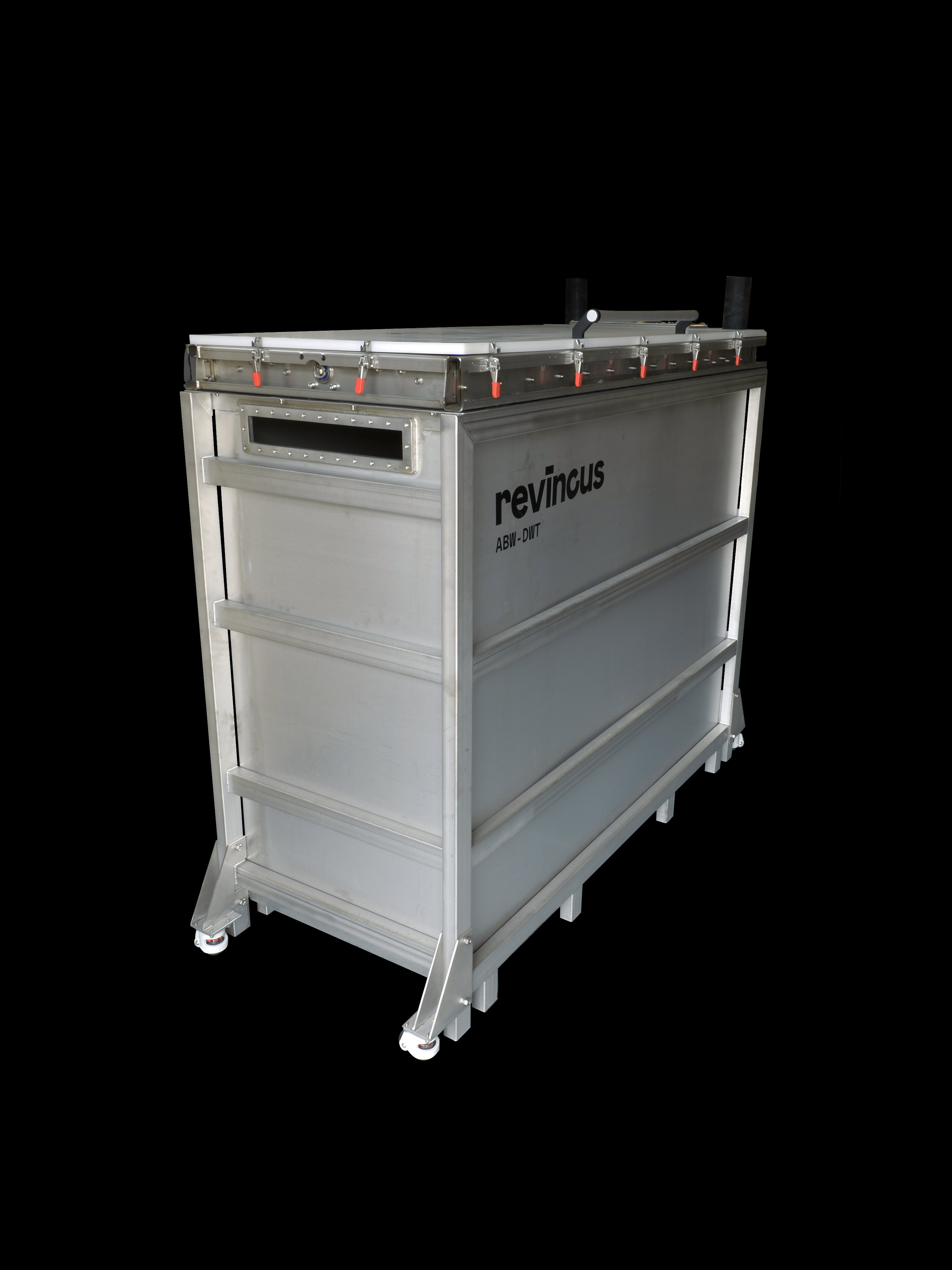

Plate Heat Exchanger

ABW-DWT

The ABW-DWT enables heat recovery from wastewater with high flow rates. The range of applications extends from domestic and industrial mixed wastewater systems to swimming pools and agricultural use in aquaculture. The recovered heat can be used indirectly via any heat pump or directly through an intermediate circuit for heating drinking water.

Application*
Industry, swimming pools, residential blocks, sewage treatment plants, agriculture, etc.

*Use of greywater or mixed wastewater, pre-filter necessary for domestic mixed wastewater, limitation due to high chloride content
Performance*
up to 250 kW

*Use case wastewater; continuous wastewater flow, temperature reduction by heat pump
Heat exchanger area*
6,70 – 67,2 m²
2 – 10 plates

*Cascade switchable for larger area
Material
Stainless steel (1.4404)
max. Wastewater Temperature
70°C
Dimensions
Height: 1500mm
Length: 1800mm
Width: 780mm
Empty weight
up to approx. 500kg
Connections
Heat Exchanger: DN20 – 65 (1" – 2.5")
Overflow: DN110
Greywater: DN110
Drain: DN110
Cleaning
Integrated extremely durable and robust surface cleaning system for sustained efficiency

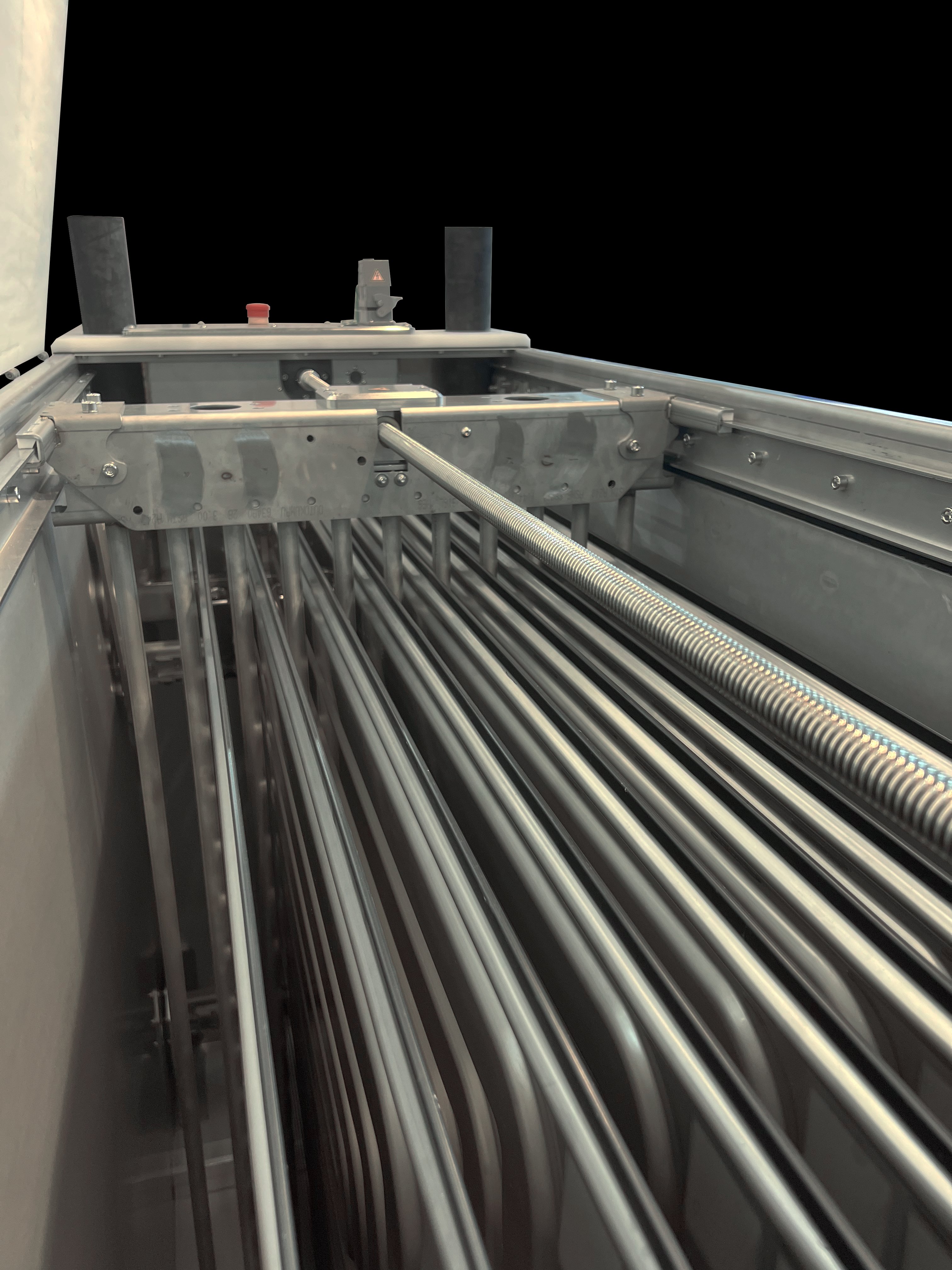

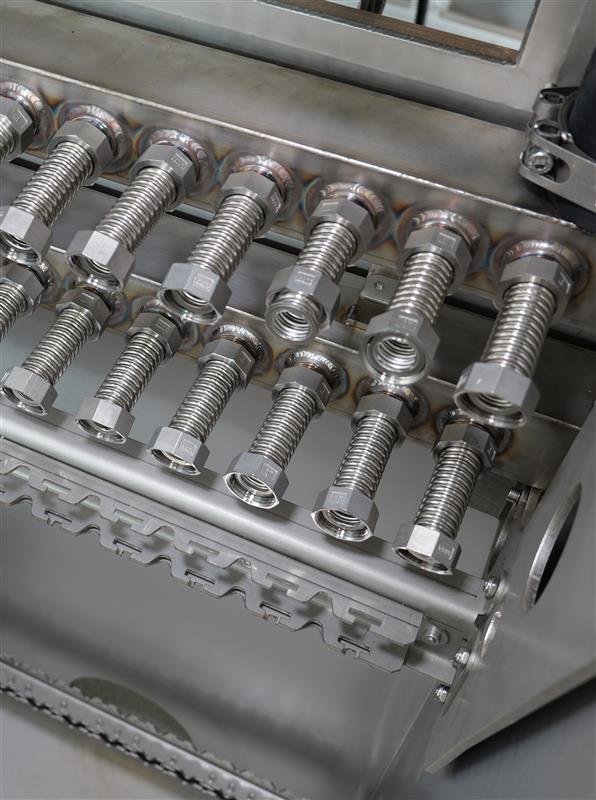

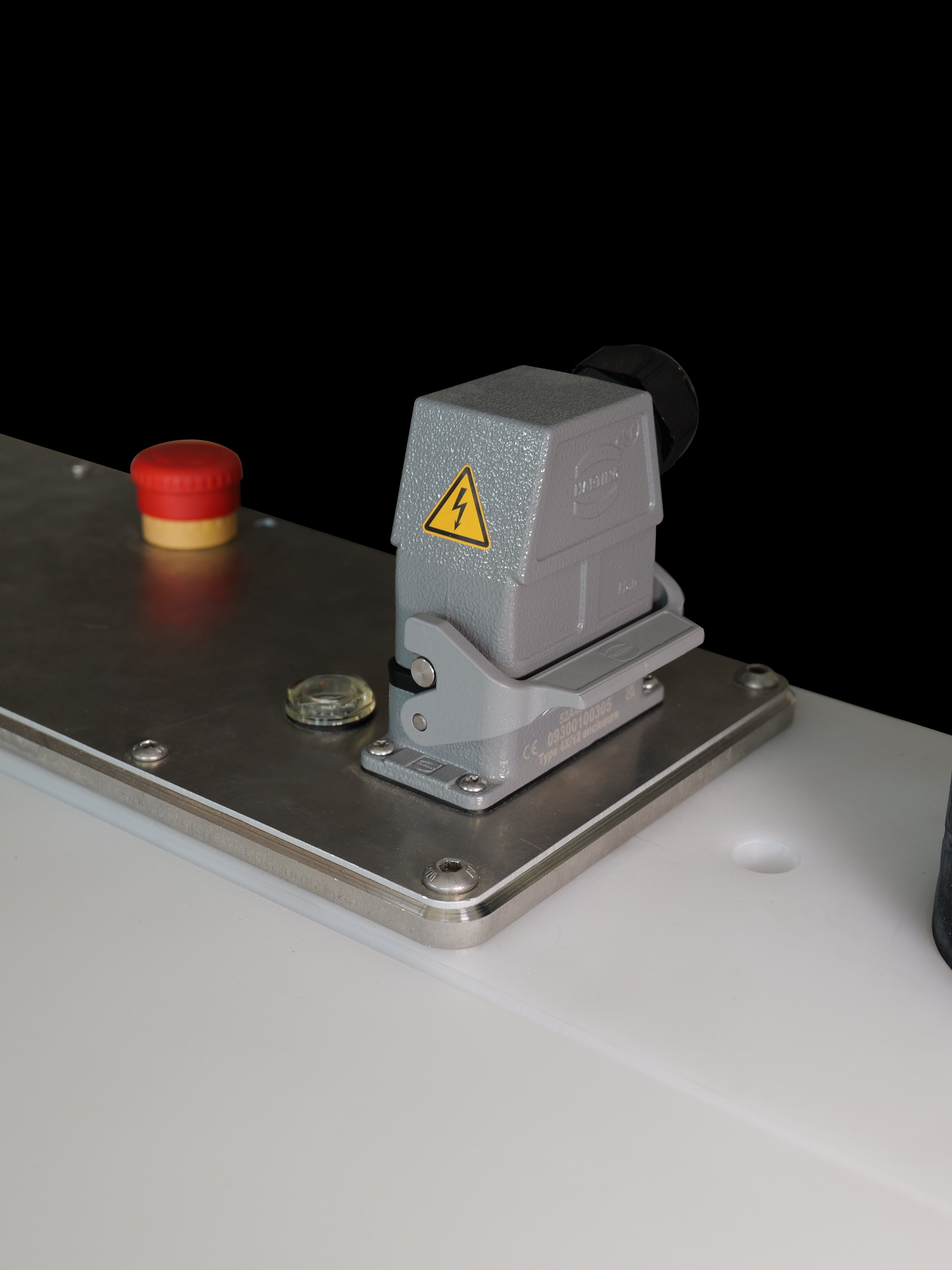

Abwasserwärmetauscher ABW-DWT von revincus Abwasserwärmetauscher ABW-DWT von revincus Detailaufnahme Abwasserwärmetauscher ABW-DWT von revincus Detailaufnahme Abwasserwärmetauscher ABW-DWT von revincus mit und ohne Verkleidung

ABW-DWT Request

Your first step towards wastewater heat recovery.

I have read the information on data protection and the processing of my personal data and I agree to it.

*

I agree that an employee of revincus GmbH may contact me by phone or email.

*

The fields marked with * are mandatory.

Thank you for your inquiry!
Your request has been received, a representative will contact you shortly.

Downloads

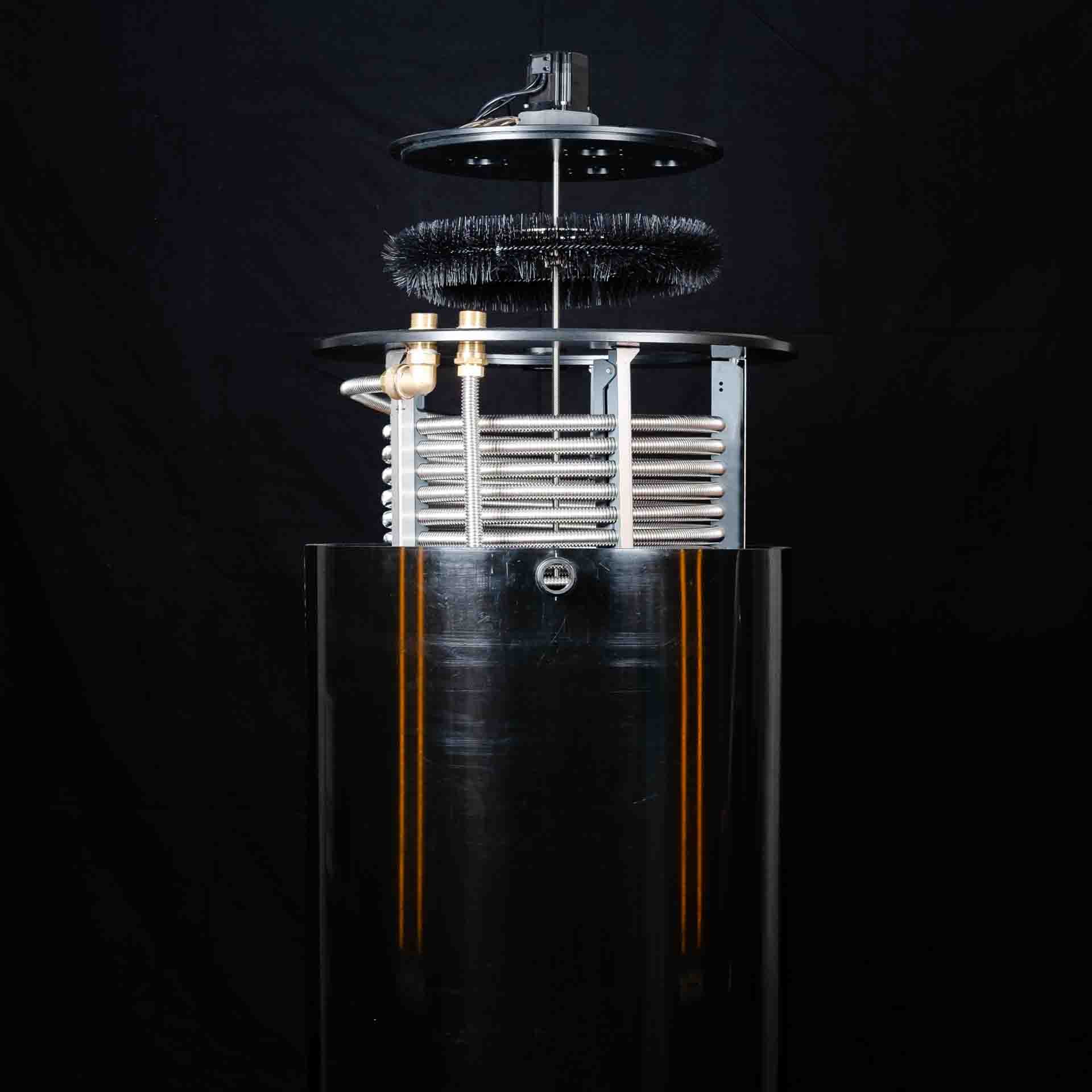

Buffer Storage Heat Exchanger

ABW-PSW

The wastewater heat exchanger has been specifically developed for heat recovery from greywater. It can be used in buildings with at least 20 residents and can be combined with any brine heat pumps. In buildings without separate greywater management, the ABW-K2 can be pre-installed.

Application
non-faecal contaminated wastewater
Performance*
5.5kW

*Use case domestic greywater; reduction from 25°C to 8°C by heat pump
Heat exchanger area
6.6m²
Design
700 L capacity
min. 20 People
max. 40 people

Cascade switchable for higher capacity volumes
Dimensions
Height: 1400mm
Diameter: 780mm
Connections
Heat Exchanger: DN20(1")
Overflow: DN50
Greywater: DN75
Drain: DN110
Cleaning
Integrated brush cleaning system for sustained efficiency

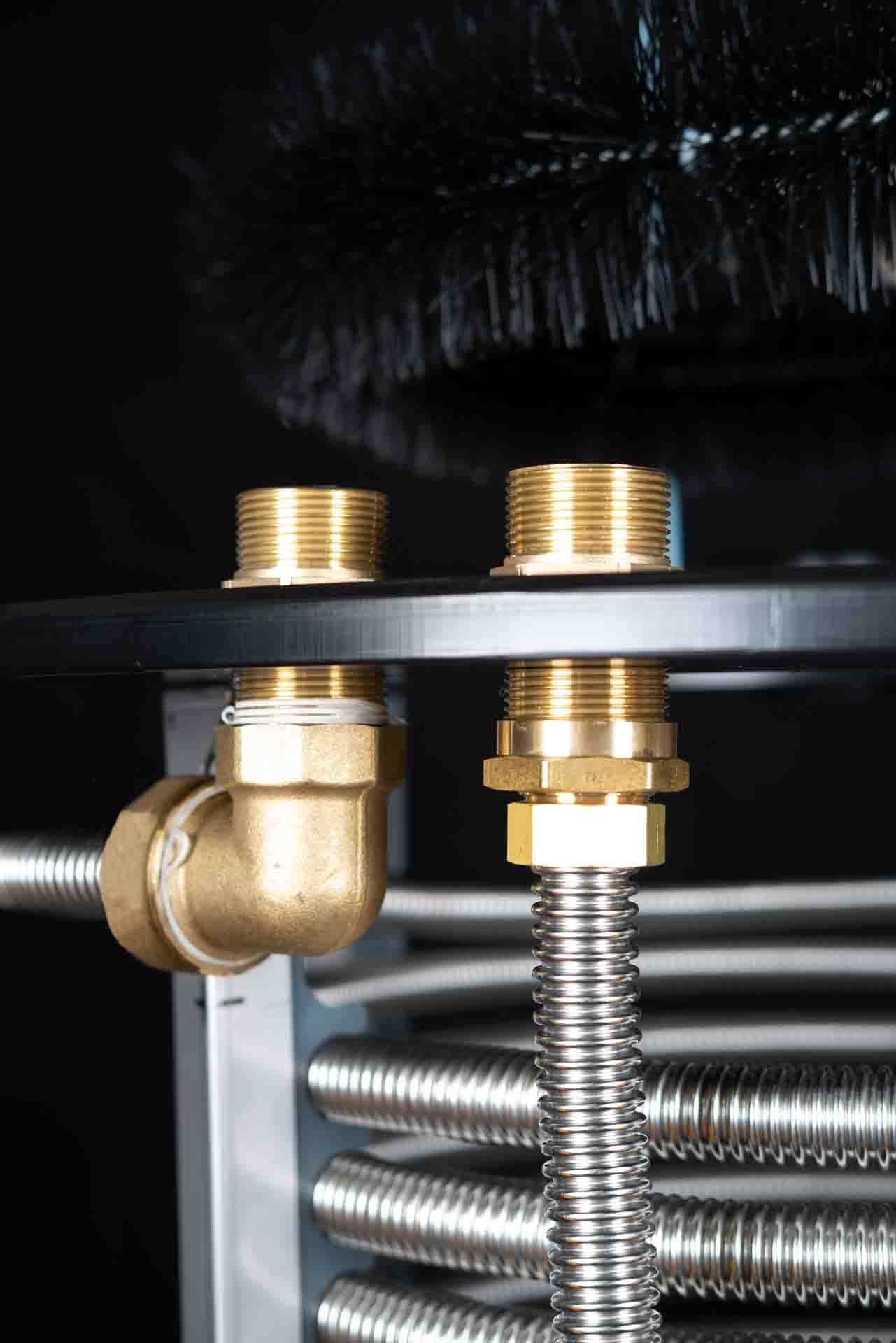

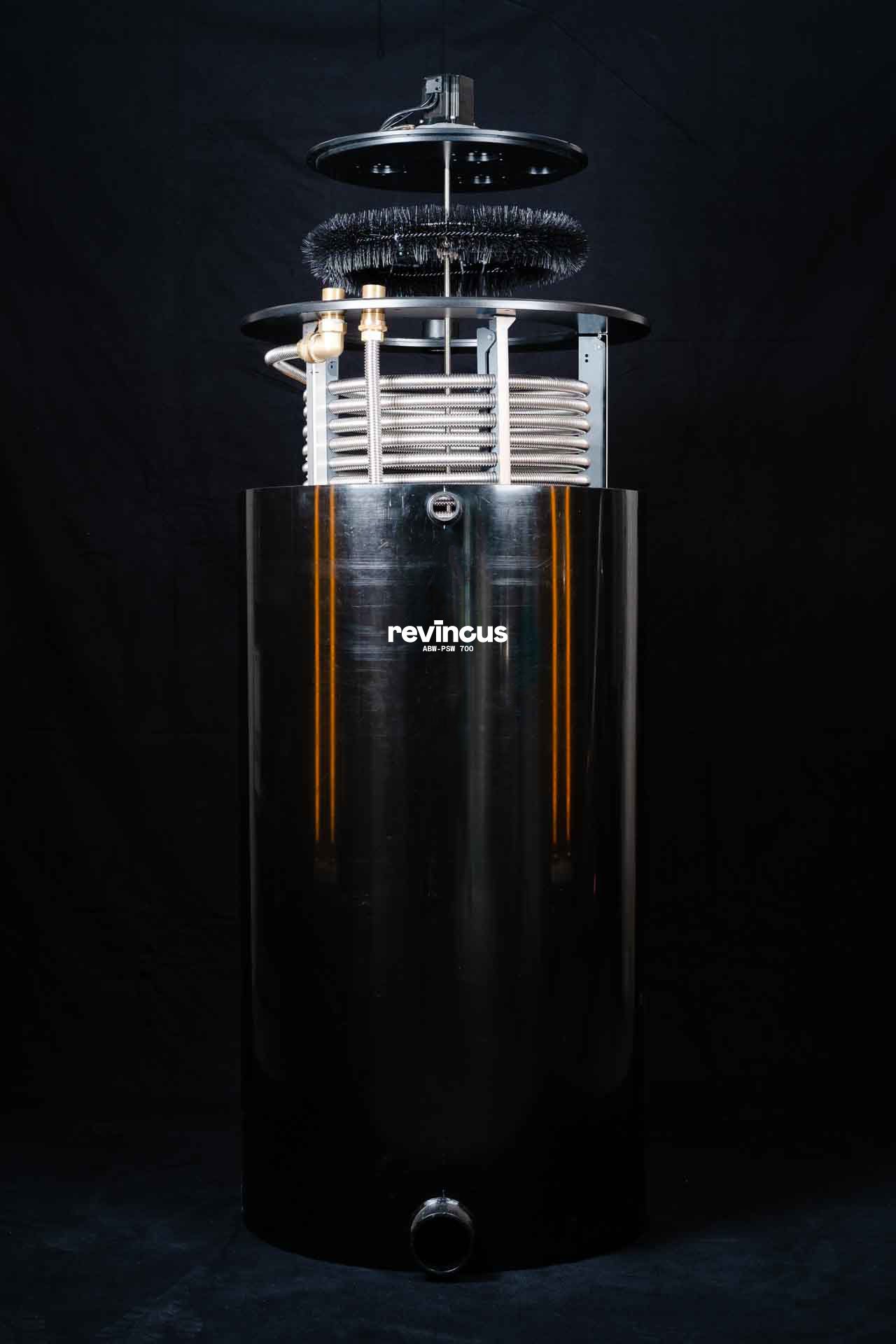

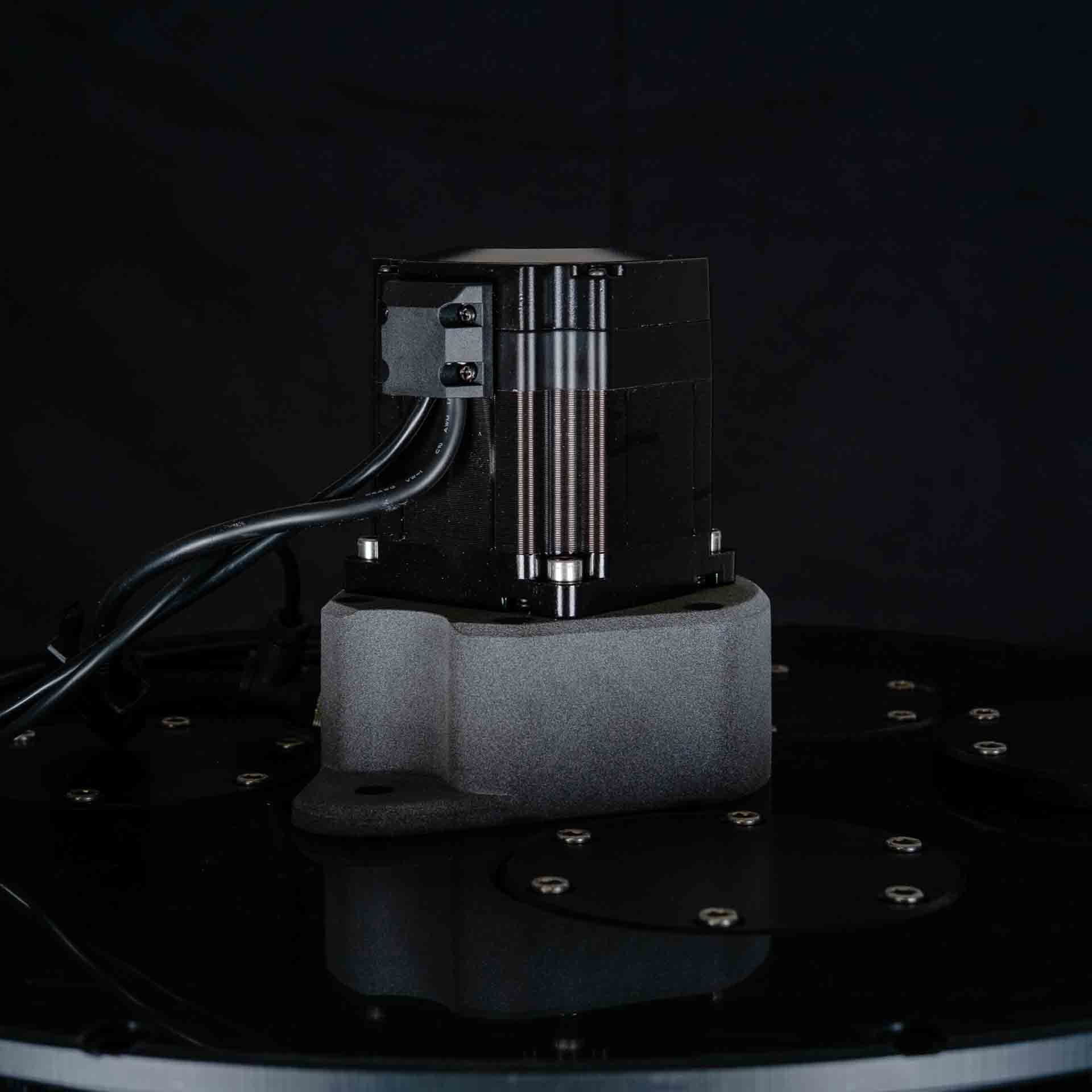

Abwasserwärmetauscher ABW-PSW von revincus Abwasserwärmetauscher ABW-PSW von revincus Detailaufnahme Abwasserwärmetauscher ABW-PSW von revincus Detailaufnahme Abwasserwärmetauscher ABW-PSW von revincus Detailaufnahme
Downloads

ABW-PSW Request

Your first step towards wastewater heat recovery.

I have read the information on data protection and the processing of my personal data and I agree to it.

*

I agree that an employee of revincus GmbH may contact me by phone or email.

*

The fields marked with an * are mandatory.

Thank you for your inquiry!

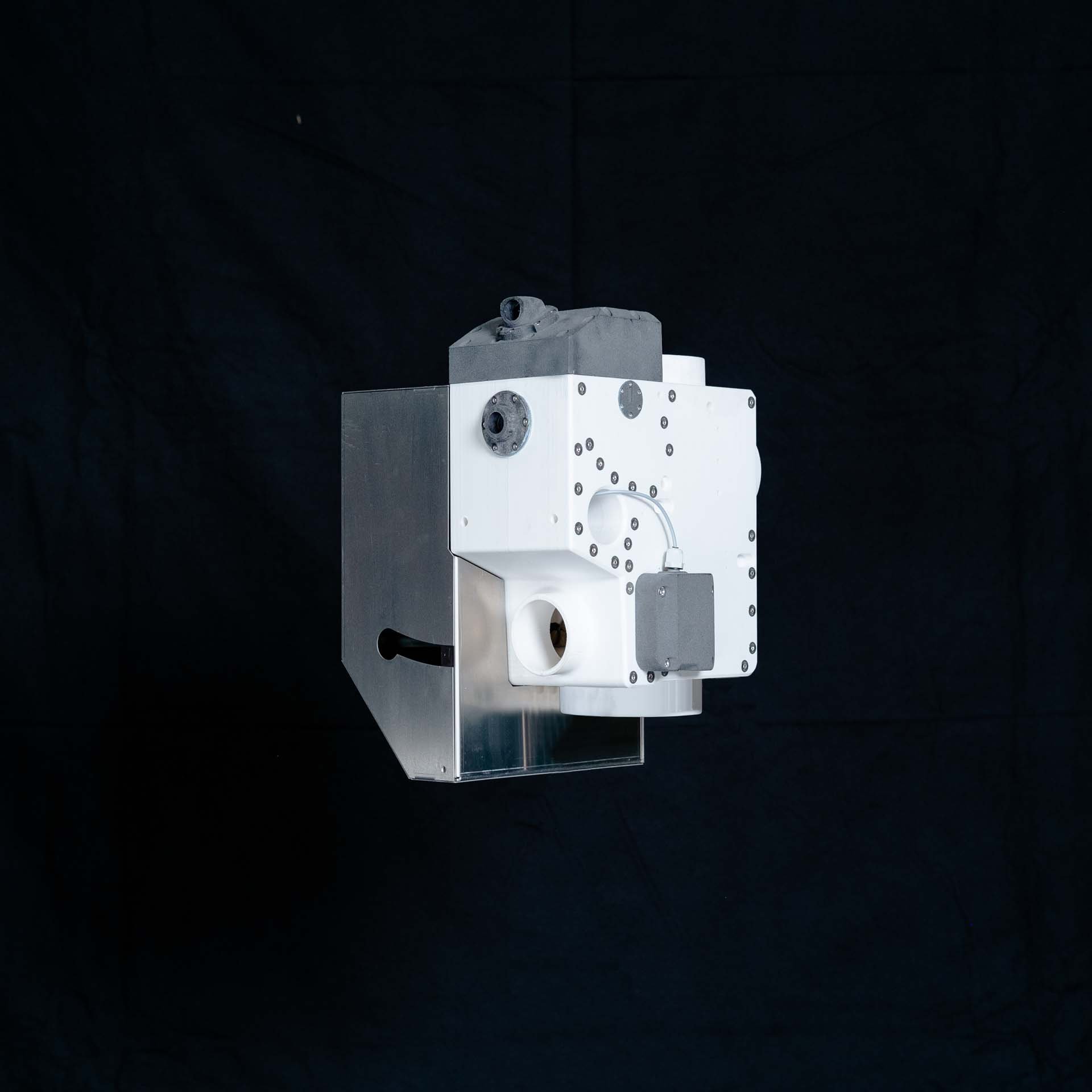

Wastewater Diverter

ABW-K2

The wastewater diverter ABW-K2 is used to separate greywater and blackwater in a combined wastewater line. By integrating a wastewater diverter, it is possible to implement wastewater heat recovery in existing buildings without retrofitting a separate greywater line.

Application
Separation of greywater & blackwater in the downpipe
Dimensions
Height: 445mm
Width: 320mm
Depth: 330mm
Connections
Wastewater connection: DN110
Greywater connection: DN75
Blackwater connection: DN110
Overflow: DN110

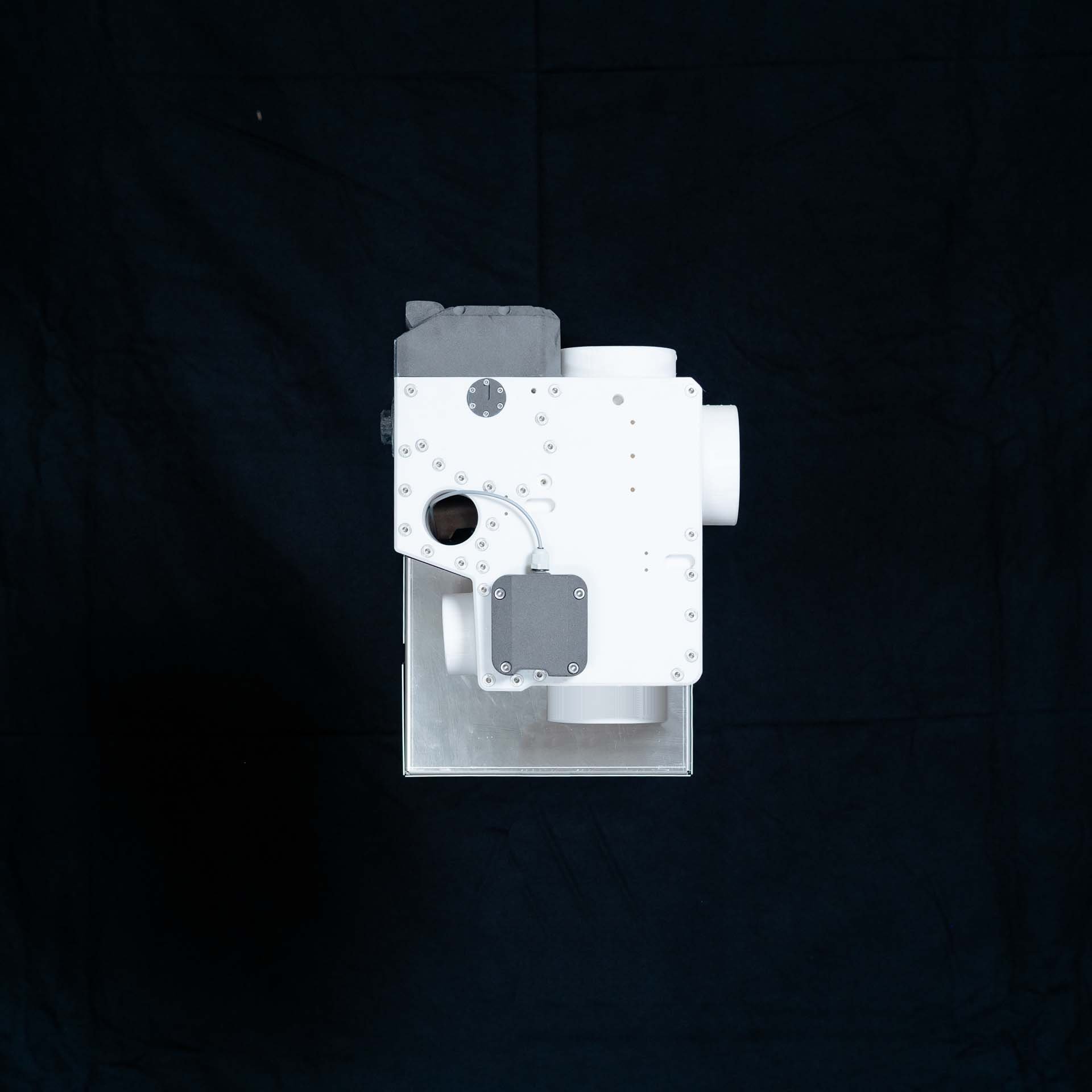

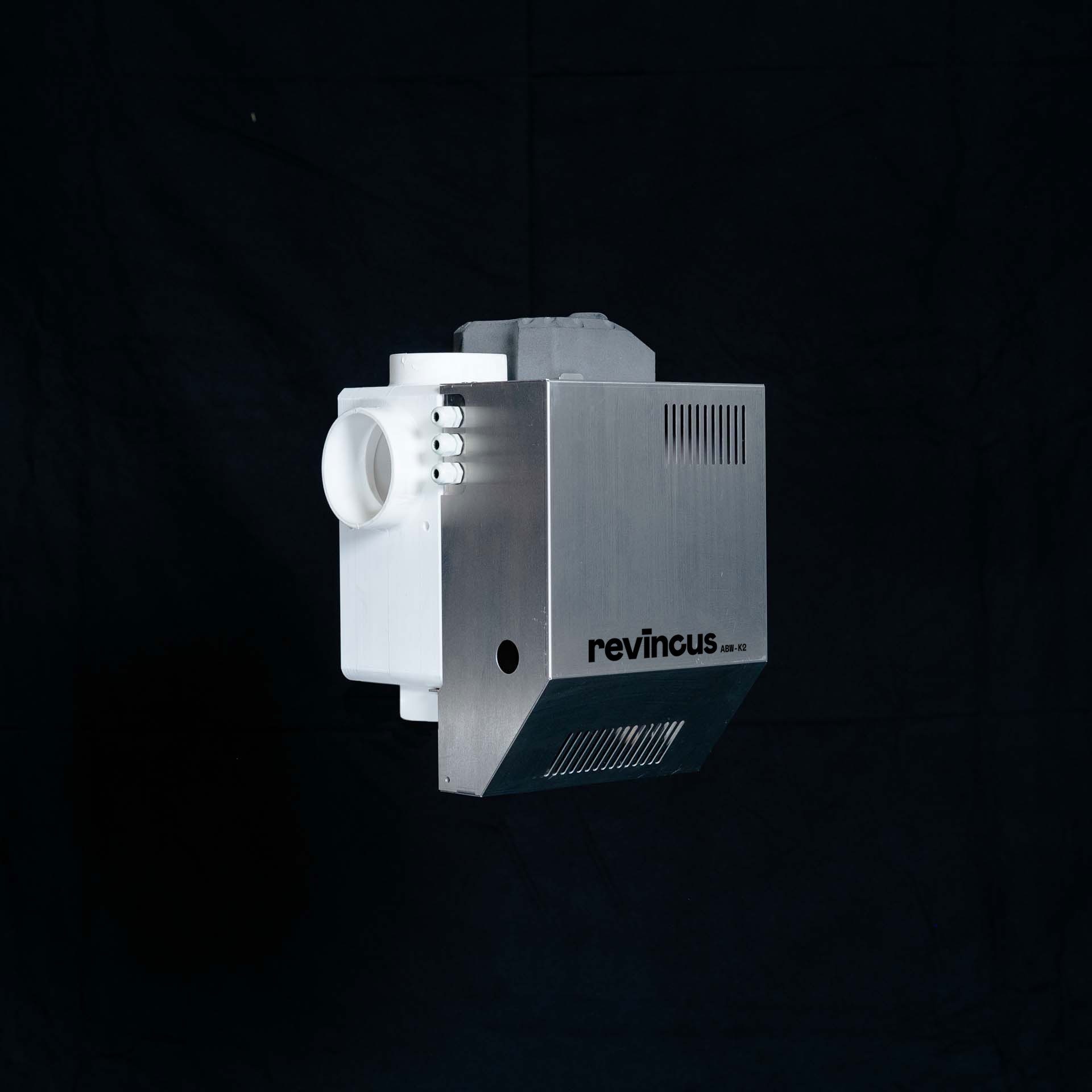

Abwasserweiche ABW-K2 von revincus Abwasserweiche ABW-K2 von revincus Abwasserweiche ABW-K2 von revincus Abwasserweiche ABW-K2 von revincus
Downloads

ABW-K2 Inquiry

Your first step towards separating wastewater and recovering wastewater heat.

I have read the information on data protection and the processing of my personal data and I agree to it.

*

I agree that an employee of revincus GmbH may contact me by phone or email.

*

The fields marked with an * are mandatory.

Thank you for your inquiry!

Flush Function Button

SFT

The flush function button SFT is used for detecting toilet flushes (black water). It is installed in combination with the wastewater diverter ABW-K2 and ensures an error-free separation of black and gray water in the downpipes.

Application Area
Multi-family house & apartment block
Data Transmission Method
LoRa Radio
Range
up to 2km
Transmission frequency
867,5 & 868,5 MHz
Bandwidth
125 kHz
Channels
18
Transmission Power
5-20 dBm
Spreading Factor
SF7-SF10
Data Packet Size
16 bytes
Dimensions (without antenna)
Width: 80mm
Height: 105mm
Depth: 40mm
Power Supply
DC 10-28V
max. 0.25 A

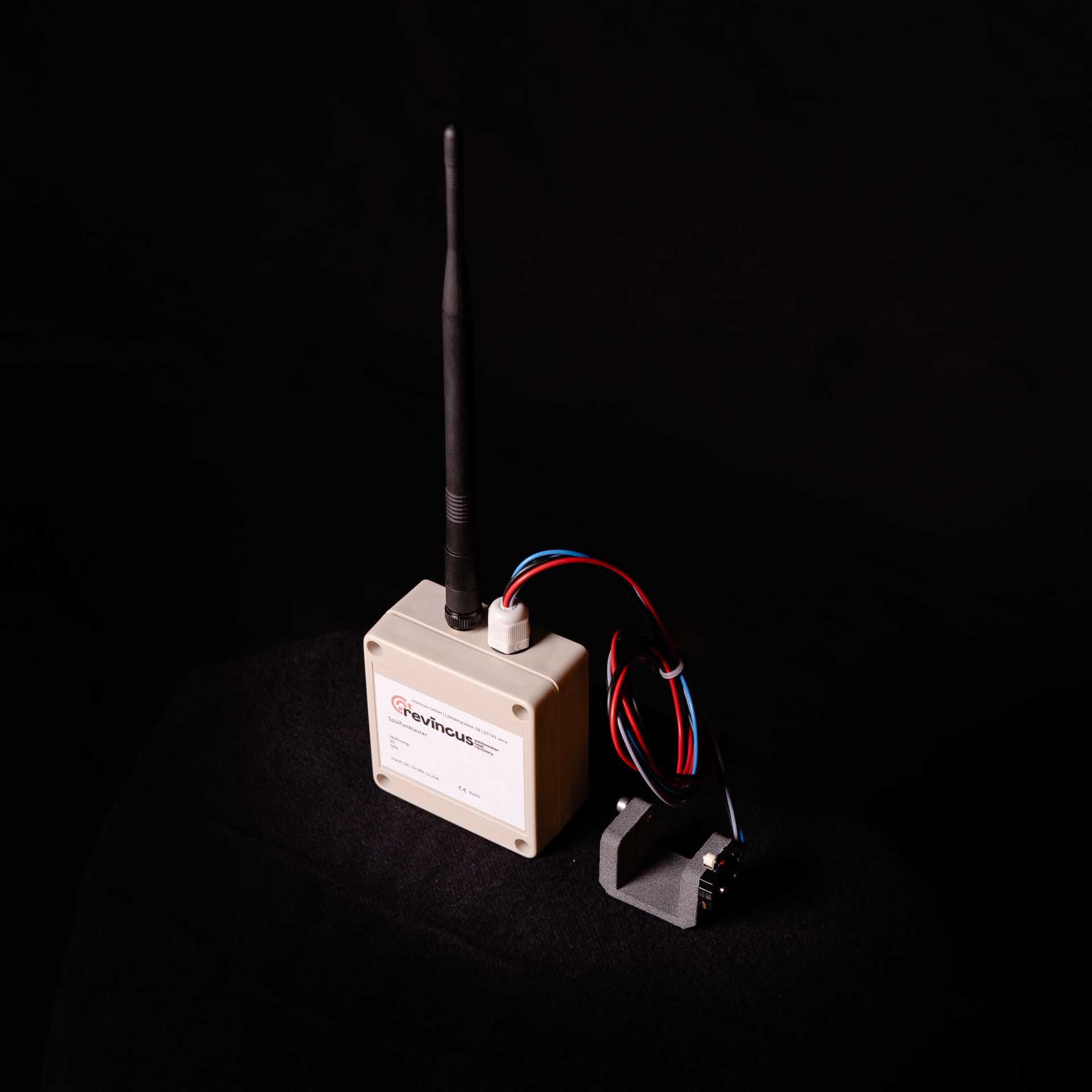

Spülfunktaster SFT von revincus

ABW-SFT Request

Your first step towards blackwater detection and wastewater heat recovery.

I have read the information on data protection and the processing of my personal data and I agree to it.

*

I agree that an employee of revincus GmbH may contact me by phone or email.

*

The fields marked with an * are mandatory.

Thank you for your inquiry!

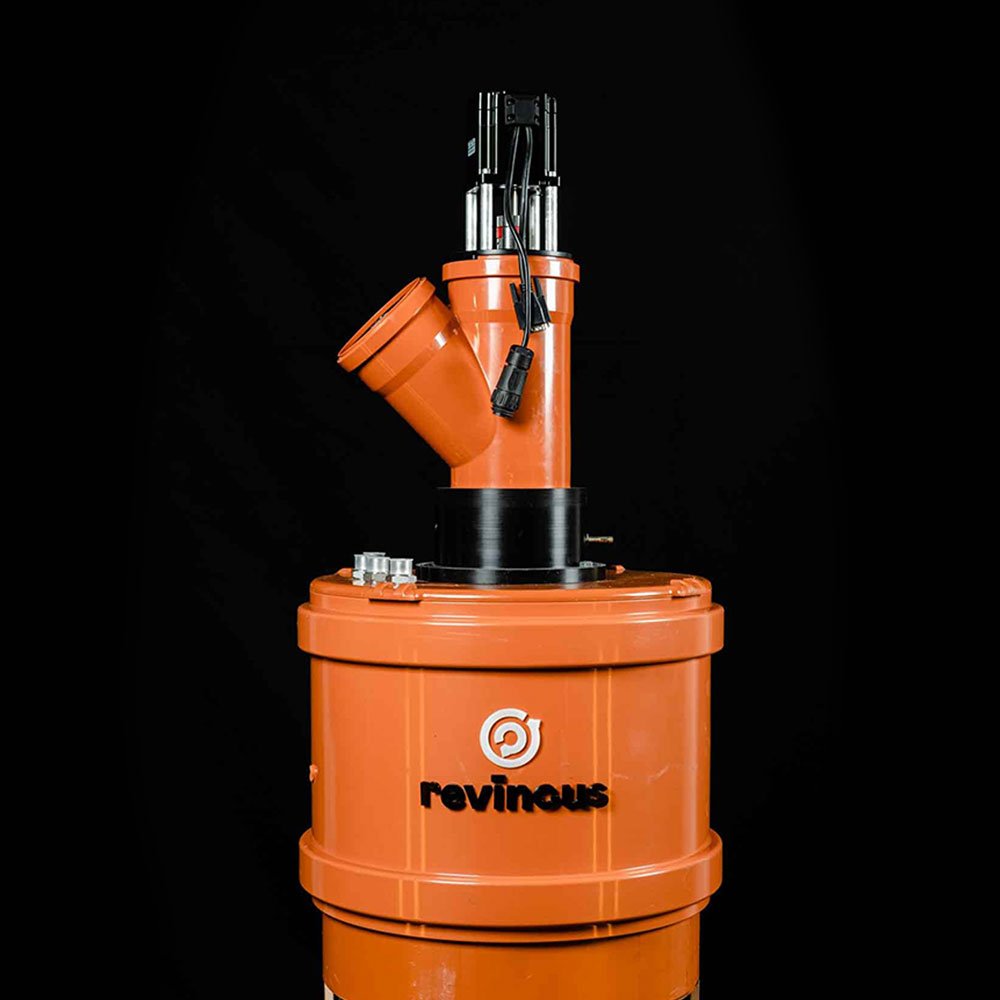

Stratified Storage Heat Exchanger

ABW-SSW 180

The stratified storage heat exchanger ABW-SSW 180 has been specifically developed for heat recovery from domestic greywater.

Applications
domestic greywater
Temperature Zones
4 zones
Power by Zones*
1.5 kW
1.2 kW
1.0 kW
0.7 kW

*Use case domestic greywater; lowering the zones from 35|30|25|20 °C to 14°C with water at 12°C
Heat exchanger area
3.3m²
Design
max. 8 people
Dimensions
Height: 1800mm
Diameter: 450mm

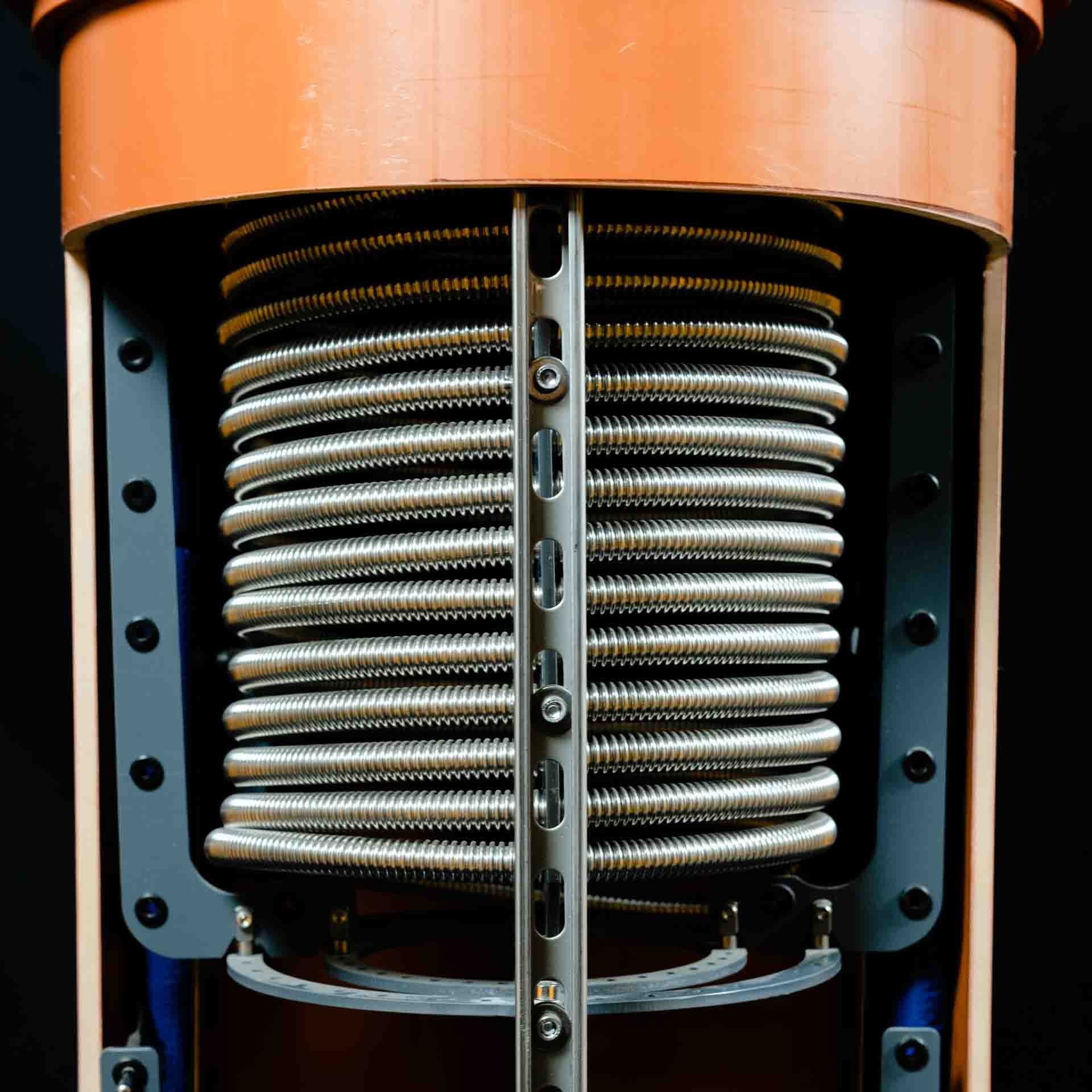

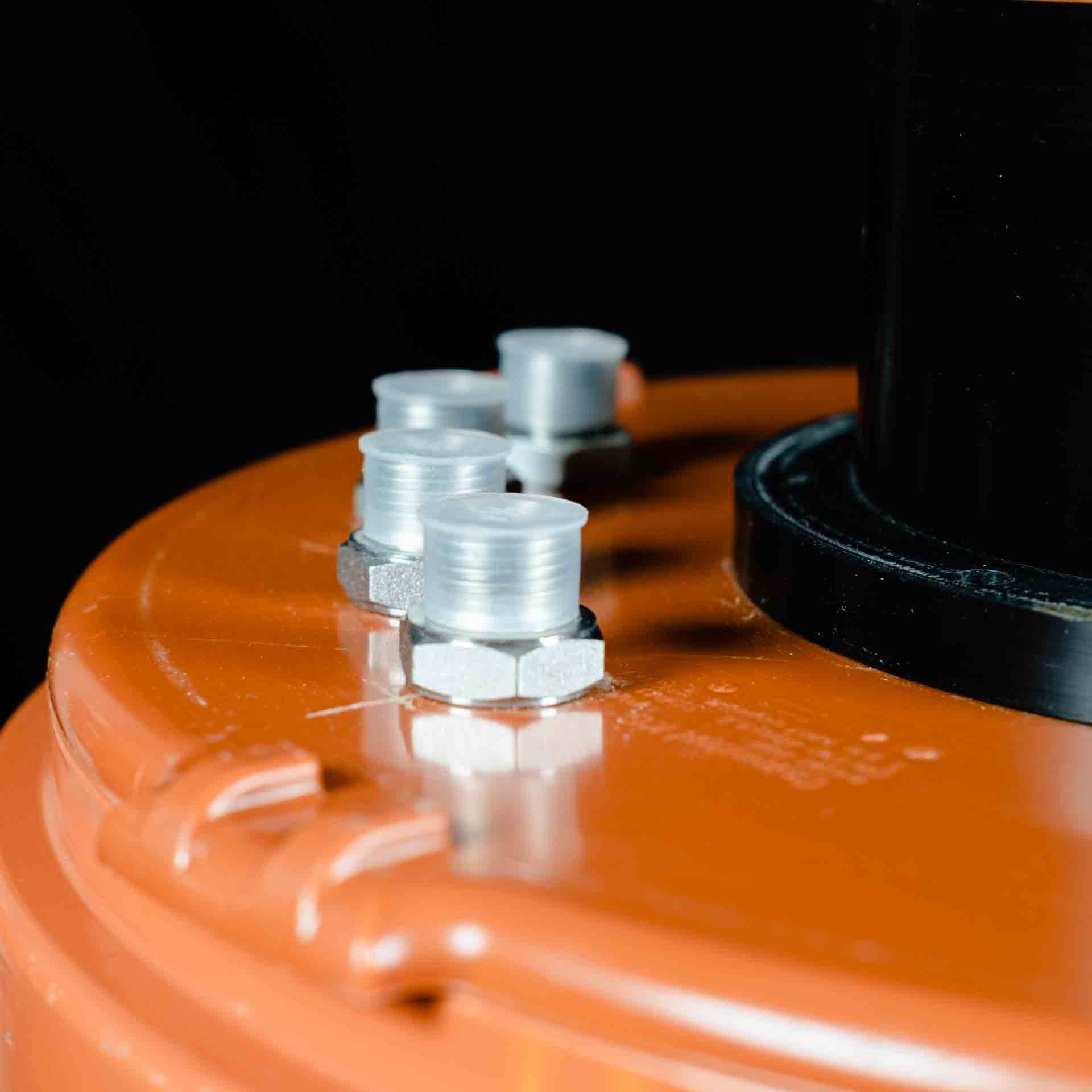

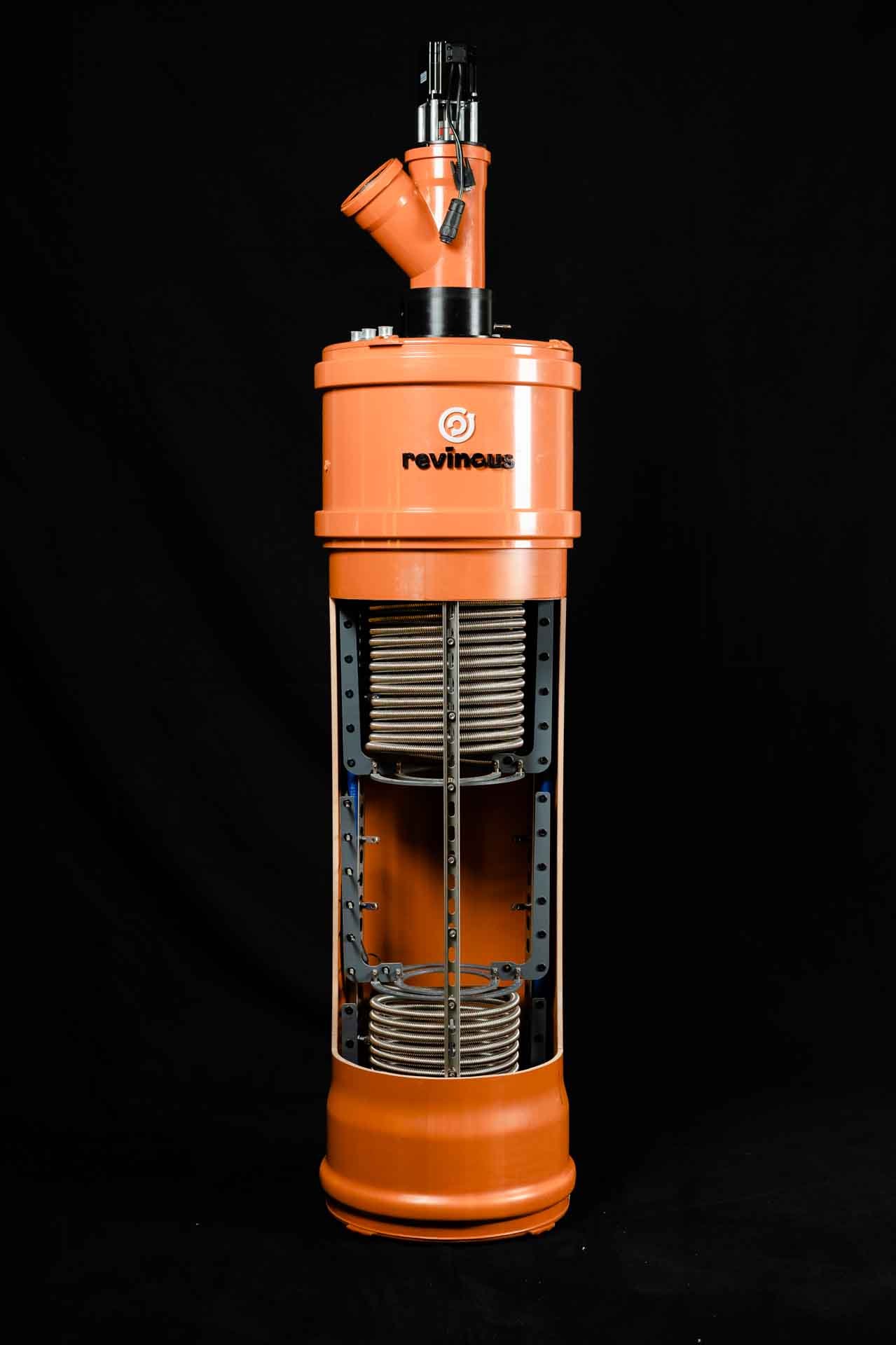

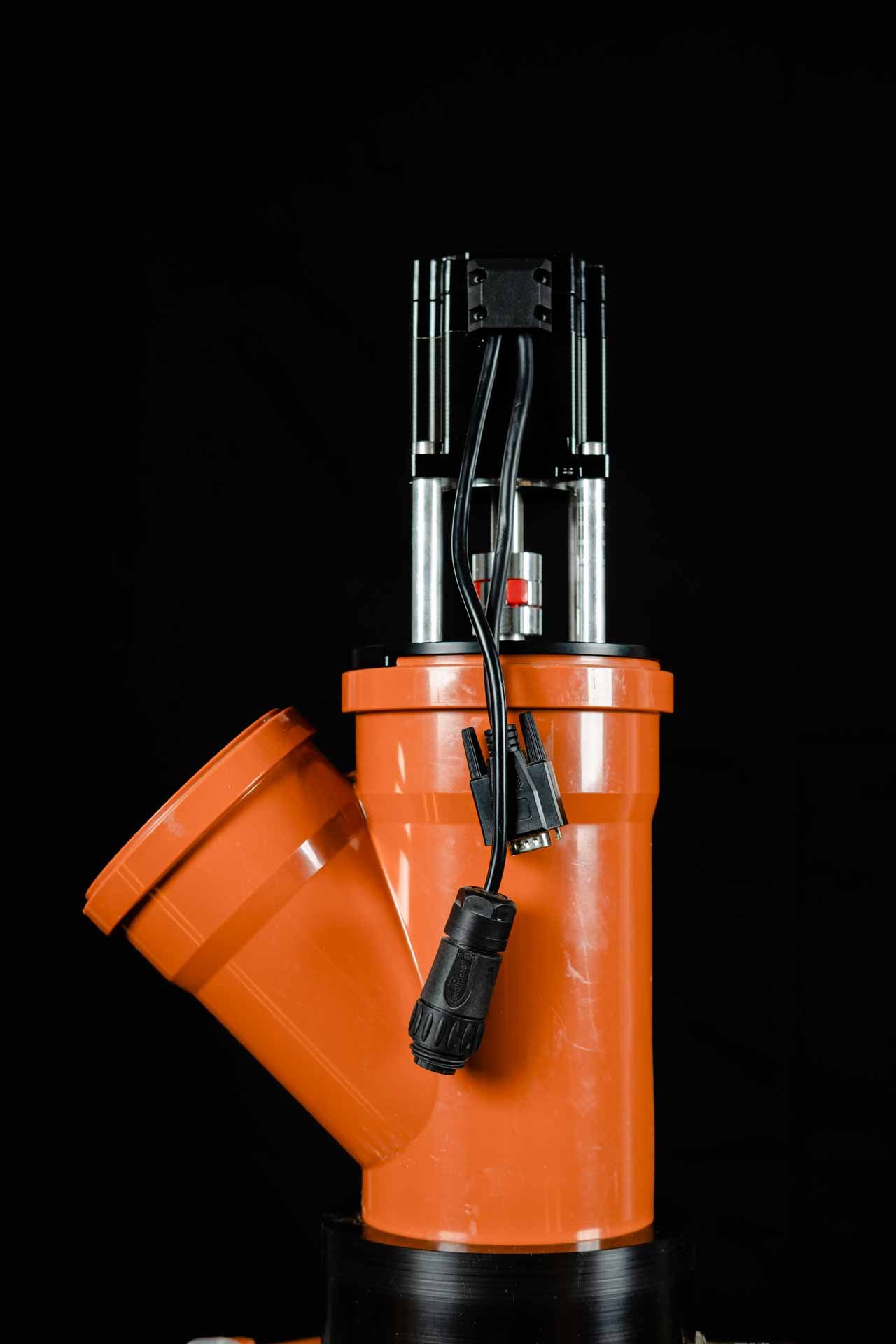

Schichtspeicherwärmetauscher ABW-SSW von revincus Schichtspeicherwärmetauscher ABW-SSW von revincus Schichtspeicherwärmetauscher ABW-SSW von revincus Schichtspeicherwärmetauscher ABW-SSW von revincus
Downloads

ABW-SSW 180 Request

Your first step towards wastewater heat recovery.

I have read the information on data protection and the processing of my personal data and I agree to it.

*

I agree that an employee of revincus GmbH may contact me by phone or email.

*

The fields marked with an * are mandatory.

Thank you for your inquiry!
